Balanced Mesh Belt,Convenyor Belt

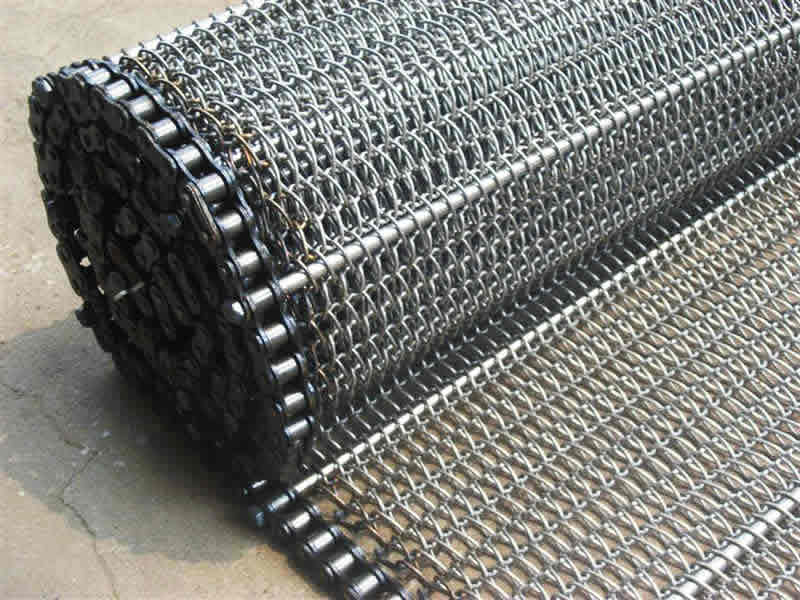

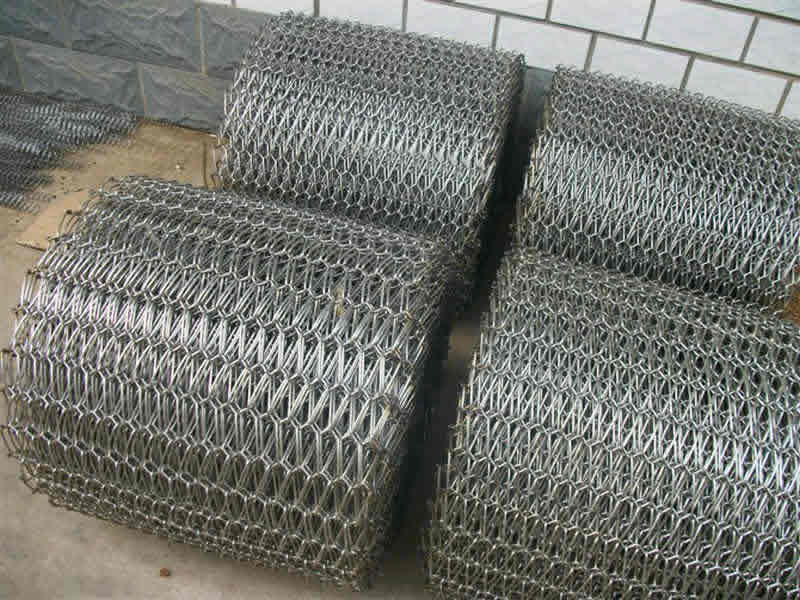

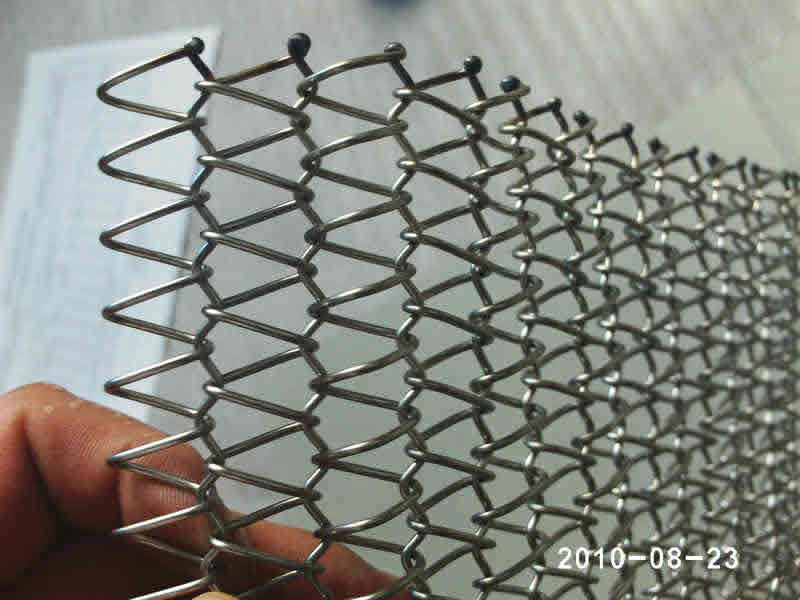

Balanced Mesh Belt is produced with alternating right and left hand spirals, joined by crimped connector rods because of its big openings and sparse.

Belts of this series are designed as winding rod to avoid the deviation caused by the transverse shaking of spirals. It is used for conveying objects of large volumes and light weight.

Applications:

It is widely used in many food processes from draining to cooling as well as in industrial sectors, such as annealing glass, automation lines under high-temperature, in heat treating and drying.

Typical Specification (mm):

BMB-40-50-6.0-5.0

--------A B C D

A: Spiral Pitch B: Rod Pitch

C: Rod Diamete D: Spiral Diameter

Specification
BMB-40-50-6.0-5.0	BMB-6-9-2.0-2.0
BMB-25-30-5.0-5.0	BMB-10-15-2.0-1.8
BMB-30-40-5.0-4.0	BMB-6-9-1.8-1.8
BMB-20-25-5.0-4.0	BMB-10-15-1.8-1.6
BMB-15-25-4.0-3.4	BMB-7-10-1.8-1.6
BMB-20-30-4.0-3.2	BMB-5-7-1.6-1.6
BMB-20-25-3.4-3.0	BMB-8-12-1.6-1.4
BMB-10-15-3.2-3.0	BMB-5-7-1.4-1.4
BMB-15-20-3.0-2.6	BMB-9-13-1.6-1.2
BMB-10-15-2.6-2.6	BMB-6-9-1.4-1.2
BMB-15-20-2.6-2.3	BMB-4-6-1.2-1.2
BMB-8-12-2.3-2.3	BMB-6-9-1.2-1.0
BMB-12-18-2.3-2.0	BMB-4-6-1.2-1.0
BMB-15-20-4.0-4.0	BMB-3-4-1.0-1.0
BMB-15-20-3.4-3.2	BMB-4-6-1.0-0.9
BMB-15-20-3.2-3.2	BMB-3-4-1.0-0.9
BMB-8-12-2.3-2.0	BMB-3-4-0.9-0.8
BMB-8-12-2.3-2.0	BMB-3-4-0.9-0.8
